PM10-5-S |
PM20-1--N |
PM10-5-SBB |
OEM are welcome |
|
· Formed thermal bond without use of any binders and adhesives.
· Mutli-layers structure cartridge, high contaminants holding capacity.
· Micro-fiber melt-blown cartridge, high removal rating.
· more kinds of surface for to meet different request.
· Certificated by FDA CFR Title 21.
|
 |
 |
 |
 |
S TYPE |
N TYPE |
MG TYPE |
G TYPE |
 |
 |
 |
 |
HOT STAMPING |
CORE TYPE |
MG WITH END CAP |
PP PARTS |
|
| |
| Specifications |
|
| Applications |
- Residential and commercial water treatment.
- Pre-RO;Post-RO
- Pre-filtration for DI water
- Fine Chemicals, reagents, solvents, resins
- Coatings
- Edible oils,
- Liquors, juices, sugars
- Make-up water
|

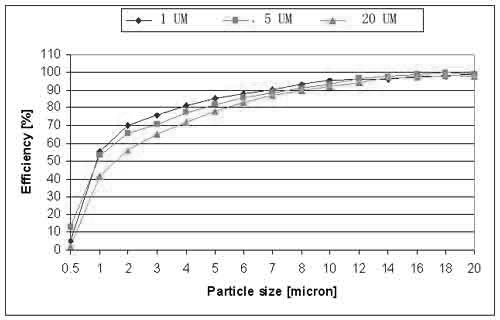

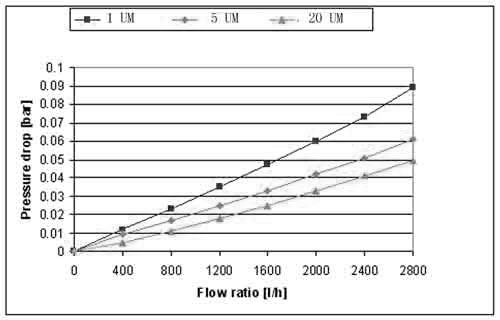

| Test Report |
|
| |
| Operations |
| Highest Operation Temperature : |
60℃ |
| Material : |
100% Polypropylene |
| Maximum operation pressure difference : |
60 ℃ 1.8kg/cm2 20℃ 3.2kg/cm2 |
| Suggestive pressure difference changes at : |
1.5kg/cm2 |
|
| |
 |
Plastic Chemical Resistant Data |
|
Order Informations
|
| SERIES |
LENGTH |
MICRON |
SURFACE TYPE |
OTHERS |
| PM |
10 |
-5 |
-SBB |
-C |
PP
Spun-Bonded Cartridges
(Melt Blown Cartridges) |
5U=125mm
5=127mm
|
MICRON RATING:
1-100 UM |
S:SMOOTH |
C: with PP core |
10U=251mm
10=254mm |
N:NATURE |
H:hot stamping |
20U=500mm
20=508mm |
MG: MINI GROOVE |
E:end cap |
30U=750mm
30=762mm |
G: GROOVE |
E2=222S |
| 40=1016mm |
SBB: SMOOTH
BIG BLUE |
E6=226S |
| 50=1270mm |
GBB: GROOVE
BIG BLUE |
EO=-DOE |
|
| |
Attentions:
1.CP Carbon Paper Cartridges can be used for whole filter housing, water purifier or reverse osmosis filter systems.
2. Ideal for use with well water.
*OEM are welcome.
|
| |
