CF Cartridge Housings are installed generally in front of Pressure vessel to wipe off small particles above 1° turbidity, for meeting subsequent handling of inflow; it may set up at the end of the water treatment system to prevent small particles inflowing finished water
Connector Style
Clamp
Flange A
Flange B
Inlet and Outlet
Female Seal
Flange Seal
Quick Seal
Cartridges in the housing
Flow Rate (t/h)
Inlet/Outlet
Pressure(bar)
Size
Quantity
10
3
1
3/4
4.5
20
3
2
1
4.5
30
3
3
1
4.5
10
5
1.5
1
4.5
20
5
3
1.5
4.5
30
5
4
2
4.5
40
5
5
2.5
4.5
10
7
2
1
4.5
20
7
4
1.5
4.5
30
7
6
2
4.5
40
7
9
2.5
4.5
30
9
9
2.5
4.5
30
12
12
3
4.5
30
15
15
4
4.5
30
20
20
4
4.5
40
20
25
4
4.5
40
30
30
4
4.5
40
35
35
4
4.5
40
40
40
5
4.5

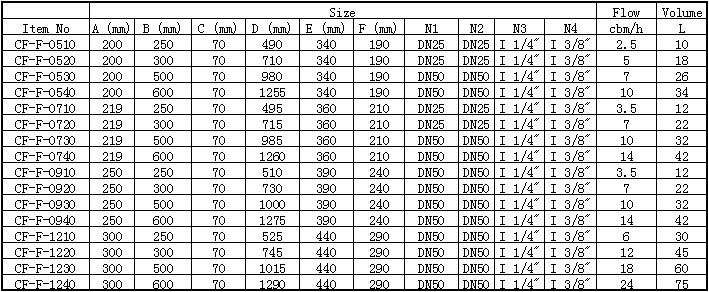

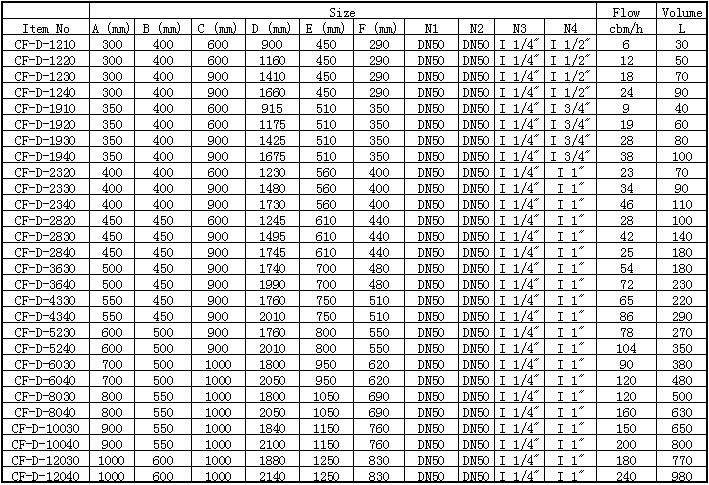

Order Informations
Specifications
Material: SUS304 or SUS316L
Length: 10", 20",30"40"
Clamp/Bolt: SUS304
Inlet/Outlet: Quick Connect or Flange
Length: 10" 、20" 、30" 、40"
Seal Material: Silicon 、EPDM、VITON
Working Pressure: 145 psi
Surface Disposal:
Polished or sandblast
Adapter: 222,226, DOE
Specifications
Material: SUS304 or SUS316L
Length: 10", 20",30"40"
Clamp/Bolt: SUS304
Inlet/Outlet: Quick Connect or Flange
Length: 10" 、20" 、30" 、40"
Seal Material: Silicon 、EPDM、VITON
Working Pressure: 145 psi
Surface Disposal:
Polished or sandblast
Adapter: 222,226, DOE
