| SPECIFICATIONS |
END CAP: |
THERMOETTING RESIN |
| CENTER TUBES |
POLYPROPYLENE |
| TEMPERATURE RANGE: |
4℃～60℃ (40℉～140℉) |
| MAXIMUM PRESSURE: |
40 PSID |
|
 |
Plastic Chemical Resistant Data |
| |
Order Informations
|
SERIES |
LENGTH |
MICRON |
SPECIALS |
| PL |
10 |
-5 |
-BB |
| PLEATED CARTRIDGE |
5U=125mm
5=127mm
|
MICRON RATING: 1-100 UM |
BB:big blue |
10U=251mm
10=254mm |
N:with PP net |
20U=500mm
20=508mm |
C: cellulose |
30U=750mm
30=762mm |
S: synthetic fiber (100% cellulose-free) |
| 40=1016mm |
| 50=1270mm |
|
Attentions:
1.Our PL cartriges can be used for whole filter housing, water purifier or reverse osmosis filter systems.
2. Ideal for use with well water.
*OEM are welcome.
|
| |
The Best -Pure type pleated cartridge
|
The best-pure pleated cartridges offers long service life and contain, no binder, adhesives or surfactant for wide compatibility of fluids.
|
|
|
|
|
PLP10-0.2-S2-S |
PLP10-1-OO-E |
PLS10-0.45-OO-S |
OEM are welcome |
|
- RO Pre-filtration
- DI Pre-filtration
- Cooling Towers
- Med. & Low Viscosity Liquids
- Pharmaceutical
- Food & Beverage
- Laboratory
|
| Operations |
| SPECIFICATIONS |
END and CENTER CORE: |
POLYPROPYLENE |
| RECOMMENDEDTEMPERATURE: |
4℃～60℃ (40℉～140℉) |
RECOMMENDED REPLACEABLE
PRESSURE DROP: |
35.6 PSI (2.5kg/c㎡) |
| MAXIMUM PRESSURE: |
68℉ at 70 PSI 20℃ at 4.9kg/c㎡
140℉ at 70 PSI 60℃ at 2.8kg/c㎡
203℉ at 70 PSI 95℃ at 1.4kg/c㎡
|
| FILTRATION AREA |
Φ56*70mm ≥0.12m²
Φ56*125mm ≥0.23m²
Φ69*245mm ≥0.60m² |
|
|
Plastic Chemical Resistant Data |
| Chemical Resistant |
| Order Informations |
SERIES |
LENGTH |
MICRON |
END CAP TYPE |
GASKET TYPE |
| PLP |
10 |
-0.5 |
-SO |
-S |
PLP=PP
PLN=NYLON 6 MEMBRANE
PLS=PES MEMBRANE
PLE=PTFE MEMBRANE
|
2A=Φ56*70mm |
0.1-60 UM |
S:FIN TYPE |
S:Silicone |
| 5A=Φ56*70mm |
P:FLAT TYE |
E:EPDM |
| 10=Φ69*245mm |
O: OPEN TYPE |
V: Vilton |
| 20=Φ69*20" |
2: 222 TYPE |
|
| 30=Φ69*30" |
6:226 TYE |
| 40=Φ69*40" |
I: INSIDE ORING |
| SPECIAL SIZE |
|
|
| |
| |

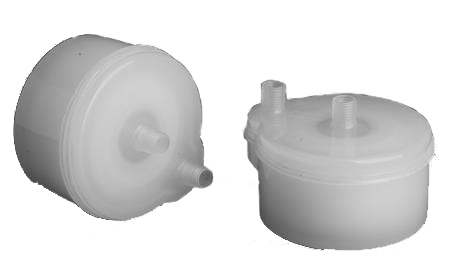

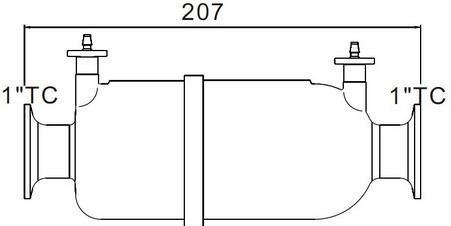

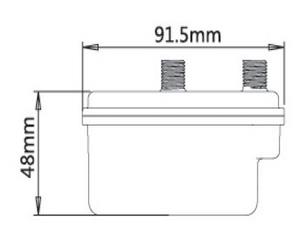

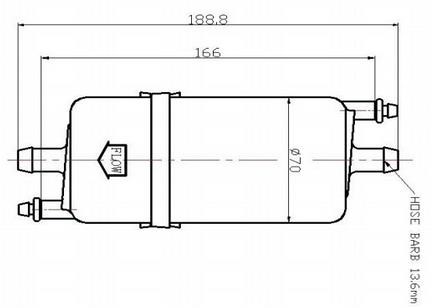

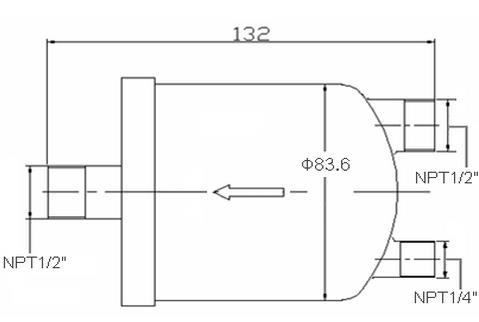

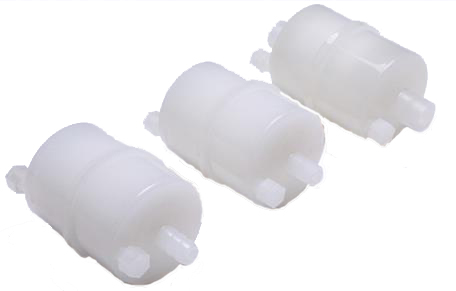

DS series Capsule Cartridges
|
Ds series Capsule Cartridges are manufactured with the highest
quality materials, under exacting clean room conditions
using ISO-controlled manufacturing processes. We offer
a variety of pore sizes and filter materials to choose from,
and all our capsules are free of adhesives to ensure
product purity.
|
|
|
|
|
|
DSN-A1 |
DSV-E |
INKSeries |
OEM are welcome |
|
- Ink
- Pre Filtration
- Food and Beverage
- Plating Solutions
- Biologics
- Process water
|
| Operations |
| SPECIFICATIONS |
Outside Cage: |
PP |
| Filter Medials: |
PP, PTFE, PES, N66 |
| Max. Pressure Drop: |
0.42 Mpa |
| Max. back wash Pressure Drop: |
0.21 Mpa |
| Max. Temp: |
60℃ (140℉) |
|
|
Plastic Chemical Resistant Data |
| |
| Order Informations |
|
| |

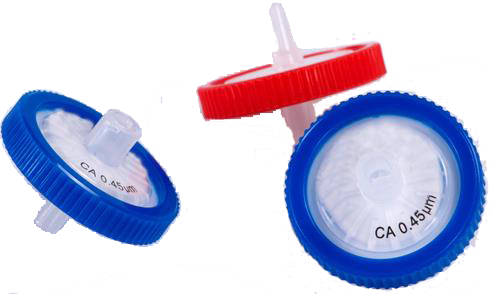

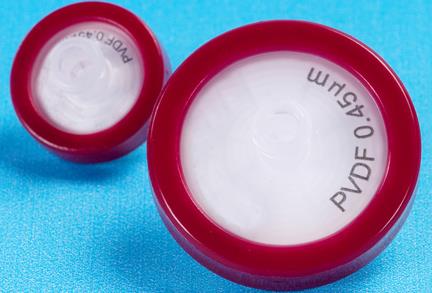

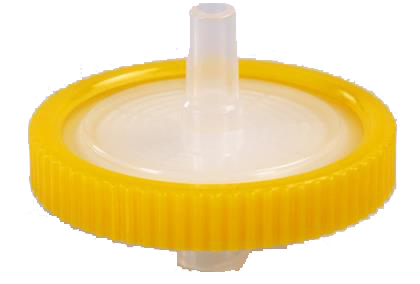

Disposable Syringe Filters
|
Disposable Syringe Filtersr is produced under good quality control and strict standards for filtration of tissue culture media, cleanup of difficult samples for analysis, filtration of colloidal material, removal of mycoplasma. ensure widely used in laboratory and pharmaceutical industry such as HPLC, QC, IPC and other sample preparation.
|
|
|
 |
|
DSP13-A |
DSP13-B |
DSV25-B |
OEM are welcome |
|
- Clarification of filtration of biological fluids, aqueous solutions
- Filtration of protein solution, enzymes, serum
- Maximum removal of protein in filtrate
- Tissue Culture Media filtration
- Tissue Culture Additive filtration
- Filtration of buffers to reduce backgrounds
|
| Operations |
| Diameter |
13mm |
25mm |
30mm |
| Filtration Area (cm² ) |
0.9 |
4.0 |
5.3 |
| Filtration Media |
As Specified |
| Housing Media |
PP or Acrylic |
| Maxium Operatiing Temperature |
60 °C (140°F) |
60 °C (140°F) |
60 °C (140°F) |
| Maximum Pressure |
74psi (5.0 bar) at 20 °C |
74psi (5.0 bar) at 20 °C |
74psi (5.0 bar) at 20 °C |
| Connectors |
Inlet: Female Luer Lock Outlet: Male Slip Luer |
Inlet: Female Luer Lock Outlet: Male Slip Luer |
Inlet: Female Luer Lock Outlet: Male Slip Luer |
| Holdup volume (μl) |
<25 |
<100 |
<200 |
|
| |
|
Plastic Chemical Resistant Data |
| |
| Order Informations |
SERIES |
LENGTH |
MICRON |
Sterile |
Package |
DSN |
13 |
-A |
-N |
-J |
DSP=PP
DSN=Nylon Membrane
DSC=Miixed Cellulose Ester
DST= PES Membrane
DSV= PVDF Membrane
DST=PTFE Membrane
|
13=Φ13mm |
A=0.22um
B=0.45um |
N=Non-sterile |
J=Plastic jar |
25=Φ25mm |
G=Gamma irradiation |
B=Bulk pack |
30=Φ30mm |
I=Individually packed |
|
|
|
