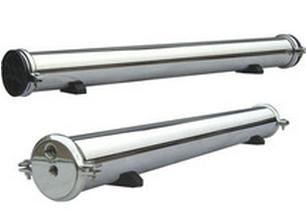

EMH series Membrane Housings


Specifications


Material: SUS304 or SUS316L
End Cap: ABS, SUS304 or SUS316L
Seal Material: Silicon 、EPDM、VITON
Working Pressure: 250 psi
Surface Disposal: Polished
Water Entry: End Port or Side Port
Double O-ring

Order Informations
Item No. Total length Central length Inlet Outlet
(mm) (mm) (mm) (mm)
EMH4021 600 540 Dg15 1/2″ Dg15 1/2″
EMH4040-1 1090 1030 Dg20 3/4″ Dg15 1/2″
EMH4040-2 2106 2046 Dg20 3/4″ Dg15 1/2″
EMH4040-3 3122 3062 Dg20 3/4″ Dg20 3/4″
EMH4040-4 4138 4018 Dg20 3/4″ Dg20 3/4″
EMH8040-1 1281 1093 Dg40 3/2″ Dg25 1″
EMH8040-2 2297 2109 Dg40 3/2″ Dg25 1″
EMH8040-3 3313 3125 Dg40 3/2″ Dg25 1″
EMH8040-4 4329 4141 Dg40 3/2″ Dg25 1″
EMH8040-5 5345 5157 Dg40 3/2″ Dg25 1″
EMH8040-6 6361 6173 Dg40 3/2″ Dg25 1″
