PHS Series Stainless Steel Cartridges
|

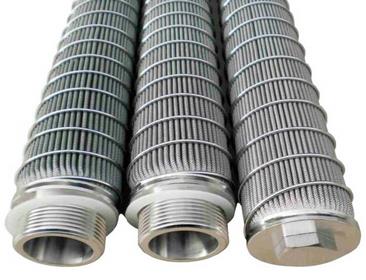

PHS cartridges are the perfect choice for high temperature (232°c) & high viscosity applications. Produced with 304l or 316l sintered stainless steel mesh / sintered powder / pleated mesh cartridge offers excellent reliability for critical applications. Produced in cylindrical or pleated media for extended cartridge life and more dirt holding capacity. All welded construction gives meta-pore cartridges the highest mechanical strength. The cartridges are designed for cleanable and reusable applications thereby eliminating frequent cartridge change out. Optional pleat protector available to prevent denting and damage to the pleated surface. |
|
 |
 |
|
PHW-250--010-2S |

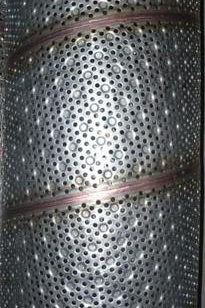

Automatic welding Mesh |
Sintered Metal Type |
BIg Blue Type |
|
- Reuse
- Aggressive gases Viscous fluid
- Corrosive fluids
- Process steam
- Hot lube
- Polymer filtration
- Oxidized water
- Clarify filtration
- Anti-bacteria
|
|
| |
| Specification |
- Standard Sizes: 10”, 20”,30” ,40” (Customized Sizes Are Available)
- Micron Rating: 0.5, 1, 3, 5, 10, 20, 25, 50
- Standard Outside Diameter: 64 mm, 116 mm
- Inner Diameter: 28 mm
|
| Operations |
| SPECIFICATIONS |
Max. Temperature |
500℉～260℃ Any cartridge style with PTFE Seal
400℉～204℃ Any cartridge style with Viton Seal
300℉～149℃ Any cartridge style with EPDM Seal
250℉～121℃ Any cartridge style with Buna N Seal
|
| Flow Rate |
10 gpm per 10" |
RECOMMENDED REPLACEABLE
PRESSURE DROP: |
35 PSI (2.4kg/c㎡) |
|
| |
| Type Of Media |
Stainless Steel Sintered Metal Type
Stainless Steel Random Fiber / Sintered Metal Fiber Type
Stainless Steel wire Mesh Type
|
| |

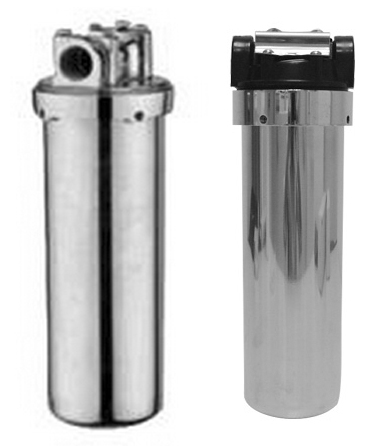

| Type of Filter Housing |
Plain cylindrical design
Pleated configuration design
Welded design
|
| |
| Order Informations |
SERIES |
LENGTH |
MICRON |
END CAP |
GASKETS |
| PHS |
-10 |
-5 |
-OO |
-S |
PHW: Stainless Steel Wire Mesh Cylindrical type

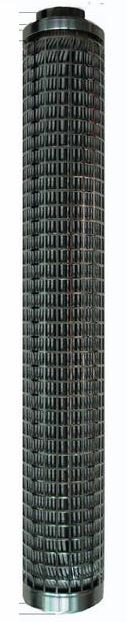

PHP: Stainless Steel Wire Mesh Pleated type
PHS: Stainless Steel Sintered Metal Type
PHR: Stainless Steel Random Fiber type
|
5U=125mm
|
MICRON RATING:
1-1000 UM |
S:Seal Type |
S:Silicone |
10U=248mm
10=254mm |
NF:1" NPT female
NM:1" NPT male
|
E:EPDM |
20U=500mm
20=508mm |
O: Open Type |
V: Vilton |
30U=750mm
30=762mm |
2: 222 TYPE |
B: Buna N |
| 40=1016mm |
6:226 TYE |
| 50=1270mm |
X:Extended Core |
|
|
|
| |
PHT Series Porou Titanium filter Cartridges
|

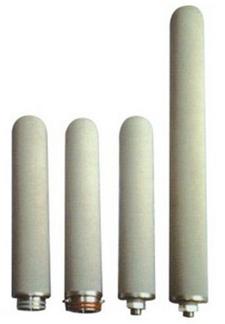

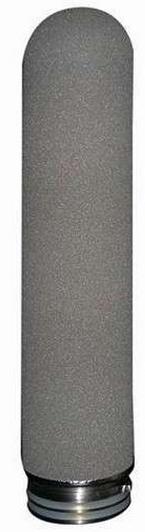

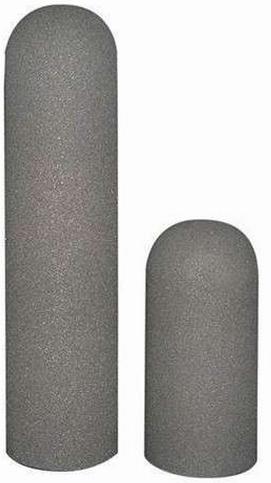

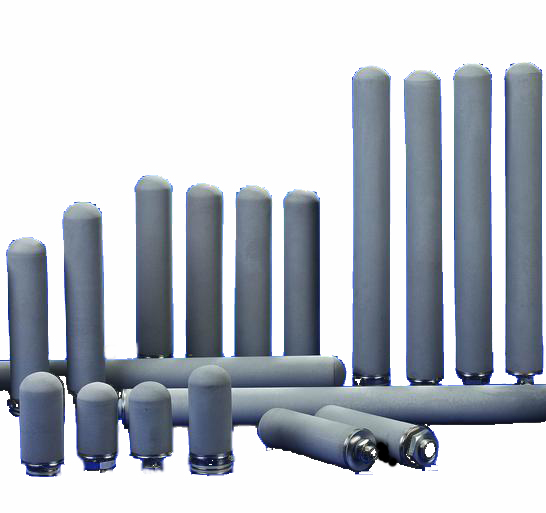

PHTPHT Series Porou Titanium Power filter Cartridges is made by titanium metal powder with purity degree of 99.4%. It supplys broad chemical compatibility and widely used in applications involving extreme operating conditions and aggressive fluids and gases such as food beverage, pharmaceutical and chemical industry, especially for decarbonizing filtration.
|
|
 |
|
|
PHT TUBE |
PHT-10-5-010-6-S |
All End Cap |
OEM are Welcome |
|
- High corrosion resistance
- All sintered titanium construction
- Backwashable for re-use and maximum economy
- Multiple end configurations and gasket/o-rings to fit most vessels
|
| Operations |
Micron |
Porosity |
Permeability
(m3/h.m2.kpa) |
Pressure |
Max.Tempt |
Max.Pressure Drop |
0.45um-100um |
35-50％ |
3-800m3/m2hkPa |
2-3Mpa |
371℃ |
0.6Mpa |
|
| Specification |
- Standard Sizes: 5", 10”, 20”,30” ,40” (Customized Sizes Are Available)
- Micron Rating: 0.5, 1, 3, 5, 10, 20, 25, 50
- Standard Outside Diameter :30～80mm
- Seal: EPDM, Buna-N, Silicone, Viton
- End Caps
|
|
| Order Informations |
SERIES |
LENGTH |
MICRON |
END CAP |
GASKETS |
| PHT |
-10 |
-5 |
-6 |
-S |
PHT: Porou Titanium Power filter Cartridges
|
5U=125mm
|
MICRON RATING:
0.45-1000 UM |
0:Open Type |
S:Silicone |
| 10U=248mm |
NF:1" NPT female |
E:EPDM |
| 10=254mm |
NM:1" NPT male |
V: Vilton |
| 20U=500mm |

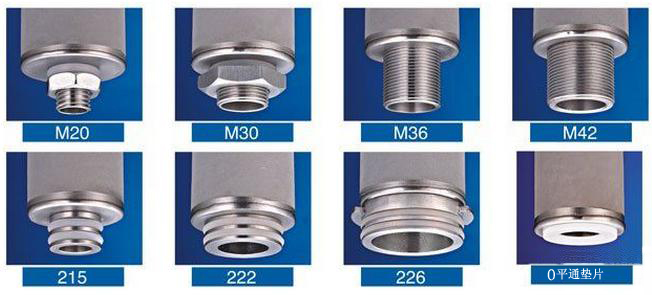

W2:Screw M20 |
B: Buna N |
| 20=508mm |
W3:Screw M30 |
| 30U=750mm |
W36:Screw M36 |
| 30=762mm |
W4:Screw M40 |
| 40=1016mm |
2: 222 TYPE |
| 50=1270mm |
6:226 TYE |
| 5:215 Type |
|
| |
|
|
| |
|
