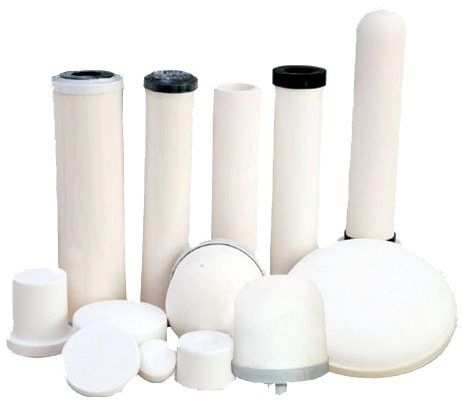

PC series Ceramic Cartridges
|
PCS series
|
PCA ceramic filter have plenty of small pore, which are able to filter dirt, debris, and bacteria from the water. Diatomaceous earth, or clay, is a type of sedimentary rock that is composed of very fine particles that usually makes up this type offilter. The purpose of these filters is to provide clean drinking water that is bacteriologically safe.
|
|
|
|
|
PCO-10-0.5 |
PCS-10-0.5 |
PCOS-10-0.5 |
Special Size |
|
- Abosoluted filtration,0.9micron.
- Reuse
- Anti-bacteria
- High service lifte, 20000pcs/Month
|
| Operations |
| SPECIFICATIONS |
END CAP: |
POLYPROPYLENE |
| MATERIALS: |
.DIATOMACEOUS EARTH |
| TEMPERATURE RANGE: |
4℃～60℃ (40℉～140℉) |
| MAXIMUM PRESSURE: |
40 PSID |
|
| Order Informations |
SERIES |
LENGTH |
MICRON |
SPECIALS |
| PCO |
-10 |
-0.5 |
-SC |
PCO: DOE Type
PCS: Candle Type
PCD: Dome type
|
5U=125mm
5=127mm
7=7"
|
MICRON RATING: 0.5 UM |
SC:Silver Carbon |
10U=251mm
10=254mm |
NC:Nut Carbon |
20U=500mm
20=508mm |
CC:Coconut Carbon |
30U=750mm
30=762mm |
| 40=1016mm |
| 50=1270mm |
|
|
|
| |

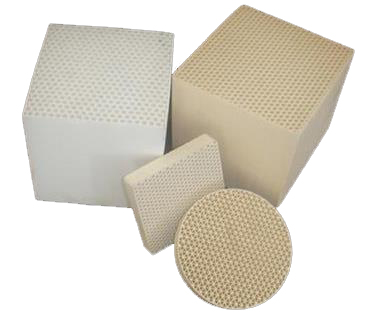

| PCH series honeycomb ceramic filter |
Cellular ceramic filters mainly used for cast iron ductile iron, gray cast iron, can be calcined in the process of iron casting, and can effectively filter out dissolved in molten iron slag, impurities, but also filter small dispersion and absorption of impurities, the elimination of ductile iron of castings due to the ball when they gave birth to an oxygen reaction and slag casting process it is difficult to eliminate the residue of the second folder, which is also effective to purify the molten iron. At the same time, greatly reduce the eddy current loss and to ensure that the casting of sand into the stable, to ensure that the casting quality.
|
|
|
 |
 |
|
PCHD |
PCH-S |
PCHG |
PCHG |
|
- High Hardness
- High Density
- Low Wear Loss,High strength
- Excellent Chemical Corrosion-resistant
- Excellent Heat-resistant/high temperature resistant
- Anti-impact
- Easy Construction
|
Chemical Composition |
Alumina Ceramic |
Mullite
porous |
Cordierite
dense |
Cordierite porous |
Quartz
Porcelain |
SiO2 |
41-44 |
26-29 |
59-59 |
48-52 |
65-68 |
Al2O3 |
50-53 |
67-70 |
24-27 |
34-37 |
25-30 |
MgO |
≤0.4 |
≤0.4 |
7-8 |
8-9 |
≤0.5 |
Alkali |
≤4 |
≤1.3 |
≤3 |
≤1.3 |
≤5 |
|
| Order Informations |
SERIES |
SIZE |
| PCHD- |
A |
Honeycomb Ceramic Filter
D:Tube type
S: Spone type
G:Board type
|
A=15*15*30cm
|
| B=15*10*10cm |
| C=Φ50*30mm |
| D=Φ75*30mm |
| E=Φ100*60mm |
| F=Φ150*100mm |
| G=Φ200*140mm |
| H=25*25*5cm |
| I=50*50*6.5cm |
|
| |
PCB series filter media
|
|
| |
- RO Pre-filtration
- DI Pre-filtration
- Cooling Towers
- Med. & Low Viscosity Liquids
- Pharmaceutical
- Food & Beverage
- Laboratory
|
| Order Informations |
SERIES |
TYPE |
| PCB |
E |
PCB
|
E=ORP Ceramic Ball |
| A=Alkaline Ceramic Ball |
| CS=Granular Calcium Sulfite |
| 4A=4A Zeolite Ball |
| 5A=5A Zeolite Ball |
| M=Maifan Stone Ceramic Ball |
| SPECIAL SIZE |
|
Attentions:
1.Our Ceramic cartriges can be used for whole filter housing, water purifier or reverse osmosis filter systems.
2. Ideal for use with well water.
*OEM are welcome.
|
|
|
| |
|
