| EB series Bag Filter Housings |
Bag filters works by the principle of microfiltration. The liquid is purified by bags through passing small permeable pores. Bag filters can be used for large amounts of water. The sizes of these pores are between the 1-200 micron . The capacity depends on the surface area from the bags. Bigger systems can clean up to more than 500 m3 /h (multi bag filters), There are special bags for various chemicals |
| Connector Style |
 |
 |
 |

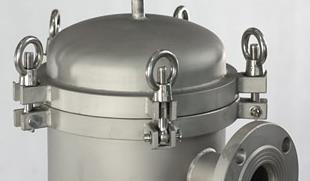

| Clamp |

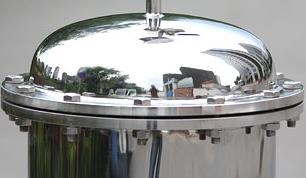

Flange A |
Flange B |
| |
| Inlet and Outlet |
 |
 |
 |
| Female Seal |
Flange Seal |
Quick Seal |
|
| |
| Order Informations |
 |
 |

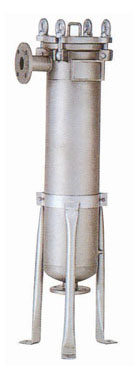

- Single Bag (1# or 2#)
- Clamp
- Max. Pressure: 100PSI
- 304、316
-
Seal material：
BUNA、 Silicone、VITONL
-
Surface disposal：Polishing or sandblast
|
|

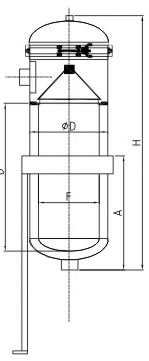

Series |
A（mm） |
B（mm） |
C（mm） |
D（mm） |
F（mm） |
Inlet/Outlet |
EBF-A-1 |
500 |
380 |
700 |
200 |
170 |
1〞-4〞 |
EBF-A-2 |
700 |
720 |
1050 |
200 |
170 |
1〞-4〞 |
EBF-A-3 |
350 |
190 |
400 |
114 |
97 |
3/4-2〞 |
EBF-A-4 |
500 |
340 |
540 |
114 |
97 |
3/4-2〞 |
|
 |
|

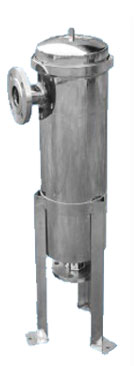

- Bag (1# or 2#)
- Clamp
- Max. Pressure: 150PSI
- 304、316L
-
Seal material：
BUNA、 Silicone、VITONL
-
Surface disposal：Polishing or sandblast
|
Series |
A（mm） |
B（mm） |
C（mm） |
D（mm） |
F（mm） |
Inlet/Outlet |
EBF-B-1 |
500 |
380 |
700 |
219 |
170 |
1〞-4〞 |
EBF-B-2 |
700 |
720 |
1070 |
219 |
170 |
1〞-4〞 |
EBF-B-3 |
350 |
190 |
430 |
114 |
97 |
3/4-2〞 |
EBF-B-4 |
500 |
340 |
580 |
114 |
97 |
3/4-2〞 |
|
 |
|

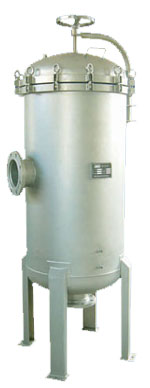

- Bag (1# or 2#)
- Clamp
- Max. Pressure: 150PSI
- 304、316L
-
Seal material：
BUNA、 Silicone、VITONL
-
Surface disposal：Polishing or sandblast |
Series |
A（mm） |
B（mm） |
C（mm） |
D（mm） |
E（mm） |
F（mm） |
H（mm） |
Inlet/Outlet |
EBM-C-1 |
108 |
1100 |
1430 |
450 |
450 |
590 |
590 |
3〞 |
EBM-C-2 |
150 |
1190 |
1540 |
500 |
500 |
640 |
640 |
4〞 |
EBM-C-3 |
150 |
1200 |
1560 |
550 |
550 |
690 |
690 |
4〞 |
EBM-C-4 |
150 |
1250 |
1630 |
600 |
600 |
740 |
760 |
5〞 |
EBM-C-5 |
200 |
1380 |
1780 |
700 |
700 |
840 |
860 |
6〞 |
EBM-C-6 |
200 |
1460 |
1920 |
750 |
750 |
910 |
930 |
8〞 |
EBM-C-7 |
200 |
1470 |
1950 |
800 |
800 |
960 |
980 |
8〞 |
EBM-C-8 |
250 |
1550 |
2050 |
900 |
900 |
1060 |
1100 |
8〞 |
|
|
|
