The Filter are able to remove solids from liquids by flowing the contaminated liquid through a filter medium that will retain the solid particulates and allow clean liquid to pass through. A liquid filter is designed to remove impurities that occur in liquids, both from natural and unnatural sources. Liquid filters are used to clean or purify a product or extend the life of the piping by removing corrosive materials that induce erosion. Filters have also been used to remove bacteria from certain liquids to prevent spoiling and, in other cases, to remove harmful particles so that the liquid may be recycled and reused. Liquid filter is widely used in the fields of Pharmacy, Fine Chemistry, brewing, drinking water and so on, to pre-filtrate and pre-clarify before related processing.

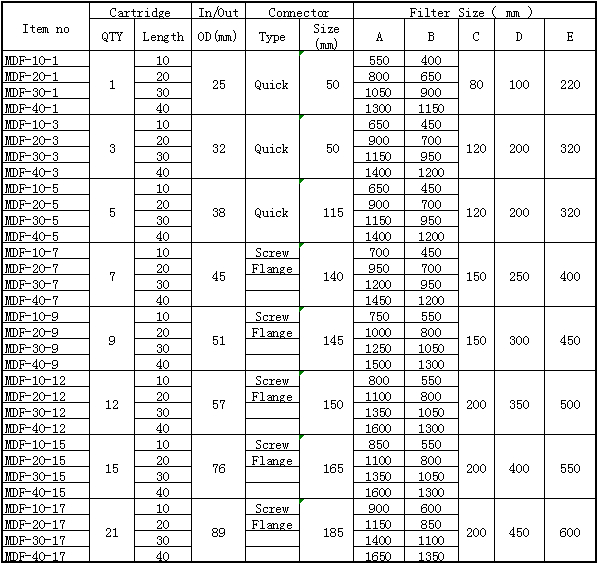

Specifications
Material: SUS304 or SUS316L
Clamp/Bolt: SUS304
Inlet/Outlet: Quick Connect or Flange
Length: 10" 、20" 、30" 、40"
Seal Material: Silicon 、EPDM、VITON
Working Pressure: 145 psi
Surface Disposal:
mirror polishing or Electrolytic polishing
Adapter: 222,226, DOE
