» High performance
» Filtration rating from 1 to 200 Micron
» Good for viscous fluid filtration
» High flow rates
» Low pressure drop
» Broad chemical compatibility
» Positive sealing arrangement with choice of materials
» High dirt holding capacity
» Simple maintenance
|
| Specifications |
Size |
OD
|
Length
|
Max. Flow Rate
|
Filtration Area
|
01# |
Φ180mm |
7" |
430mm |
16.5" |
20m3/h |
0.25m2 |
02# |
Φ180mm |
7" |
810mm |
32" |
40m3/h |
0.50m2 |
03# |
Φ105mm |
4" |
230mm |
9" |
6m3/h |
0.09m2 |
04# |
Φ105mm |
4" |
380mm |
15" |
12m3/h |
0.16m2 |
05# |
Φ155mm |
6" |
560mm |
22" |
18m3/h |
0.25m2 |
|
Meterial |
Micron Rate（µm） |
1 |
5 |
10 |
25 |
50 |
75 |
100 |
125 |
150 |
200 |
150 |
300 |
400 |
PP |
★ |
★ |
★ |
★ |
★ |
★ |
★ |
|
|
|
|
|
|
PE |
★ |
★ |
★ |
★ |
★ |
★ |
★ |
|
|
★ |
|
|
|
NY |
★ |
★ |
★ |
★ |
★ |
★ |
★ |
★ |
★ |
★ |
★ |
★ |
★ |
BOA |
|
|
|
★ |
|
|
|
|
|
|
|
|
|
|
Applications
- Chemical industry
-
Pharmaceutical industry
-
Processing industry
-
Agriculture industry
-
Industry for spray
-
coating
|
| Operations |
Filtration takes place as the liquid flows from the inside of the filter bag to the outside.
Needle felt filter bags utilize the reliable mechanisms of depth filtration and have a high dirt holding capacity.

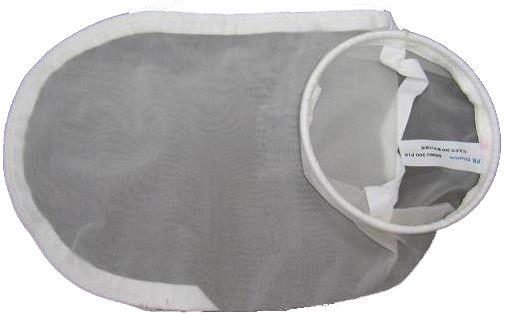

Mesh filter bags utilize the well proven mechanisms of surface filtration and are effective in removing large solid particulate or agglomerates from the liquid flow.
Filter bag replacement is simple.
All debris and contamination removed from the liquid is held inside the bag which is lifted from housing after opening the top lid or bowl and disposed of in accordance with environmental regulations.
Polypropylene: 200-220° F (93-104° C)
Polyester: 275-325° F (135-162° C)
Nylon: 275-300° F (135-149° C)
Teflon: 450-500° F (232-260° C)
|
| |
 |
Plastic Chemical Resistant Data |
| |
Order Informations
|
TYPE OF MATERIAL |
SIZE |
MICRON |
TYPE OF RING |
OTHERS |
| BPPF- |
-2 |
-050 |
-RP |
-S |
BPPF=PP Needle Felt
BPOF=PP Oil Adsorbent Bags
BNY=Nylon Monofilament Mesh
BPEF=Polyester Needle Felt
BPEM=Polyester Monofilament Mesh
BNOF=Nomex
BTEF=Teflo
BOA=
Oil Absorption Filter Bag( Melt-blown
polypropylene)
|
1=7"x16.5" |
0.5-350 UM |
RP:PP
(R
E:PE，N:Nylon) |
SS: Sewn Bag, Sewn Collar |
| 2=7"x32" |
RS: Steel Core |
WW: Welded Bag, Welded Collar |
| 3=4"x9" |
RS4:SS 304 Ring |
SW: Sewn Bag, Welded Collar |
| 4=4"x15" |
FP:flanged Polyester Ring |
WS: Welded Bag, Sewn Collar |
| 5=6"x22" |
FT:flanged Plastic Top |
| 6=Triple4"x21" |
T： Titanium |
| 7=Rosedale 5-18 x 15" |
RD:Draw String |
| Special Size |
RN:No ring |
|
Attentions:
1.Our filter bags can be used for whole filter housing, water purifier or reverse osmosis filter systems.
2. Ideal for use with well water.
*OEM are welcome.
|
| |
